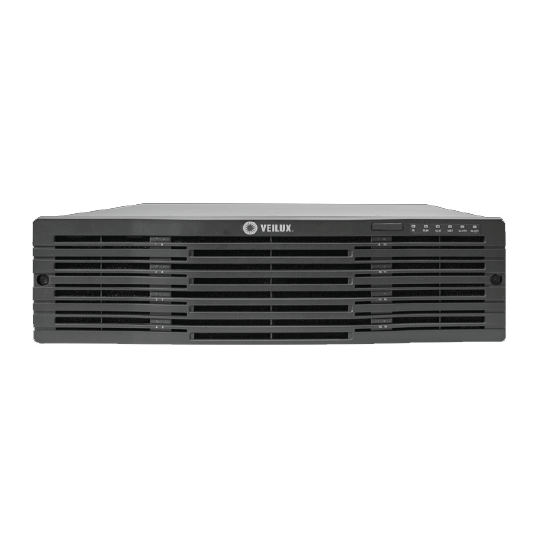

VPRO-NVR-128RR-16H-U 128Ch NVR with Redundant Power and Ultra H.265 Compression


• Ultra 265/H.265/H.264 video formats
• 64 channel input
• Third-party IP cameras supported with ONVIF conformance
• Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
• Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution



  • Ultra 265/H.265/H.264 video formats
  • 64 channel input
  • Third-party IP cameras supported with ONVIF conformance
  • Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T
  • Support 2-ch HDMI, 1-ch VGA, HDMI at up to 4K (3840×2160) resolution
  • HDMI1, HDMI2 and VGA independent outputs provided
  • Up to 12 Megapixels resolution recording
  • Redundant power supply optional
  • 2 decoding cards optional, up to 12-ch HDMI
  • HDD hot swap with RAID 0, 1, 5, 6, 10, 50, 60
  • 16 SATA HDDs, up to 10TB for each HDD
  • 2 mini SAS Interfaces
  • 12V power output
  • ANR technology to enhance the storage reliability
  • Cloud upgrade
  • Supports N+1 Hot spare



Weight 22.05 lbs
Dimensions 18.8 × 19 × 5.1 in
VIDEO/AUDIO INPUT
IP Video Input 128-ch
Two-way Audio Input 1-ch, BNC
NETWORK
Incoming Bandwidth 512Mbps
Outgoing Bandwidth 384Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
VIDEO
HDMI/VGA Output VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz,

1024×768/60Hz

HDMI1:

4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz,

1600×1200/60Hz, 1280×1024/60Hz,

1280×720/60Hz, 1024×768/60Hz

HDMI2:

4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz,

1600×1200/60Hz, 1280×1024/60Hz,

1280×720/60Hz, 1024×768/60Hz

Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, BNC
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16/32
DECODING
Decoding format Ultra 265, H.265, H.264
Live view/Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 4 x [email protected], 4 x [email protected], 16 x [email protected], 36 x [email protected],

64 x D1

HARD DISK
SATA 16 SATA interfaces
Capacity up to 10TB for each HDD
eSATA 1 eSATA interface
Mini SAS 2 miniSAS ports
SMART
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detec- tion, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search

VPRO-NVR-128RR-16H-U Spec Sheet

Download

VPRO-NVR-128RR-16H-U Spec Sheet
