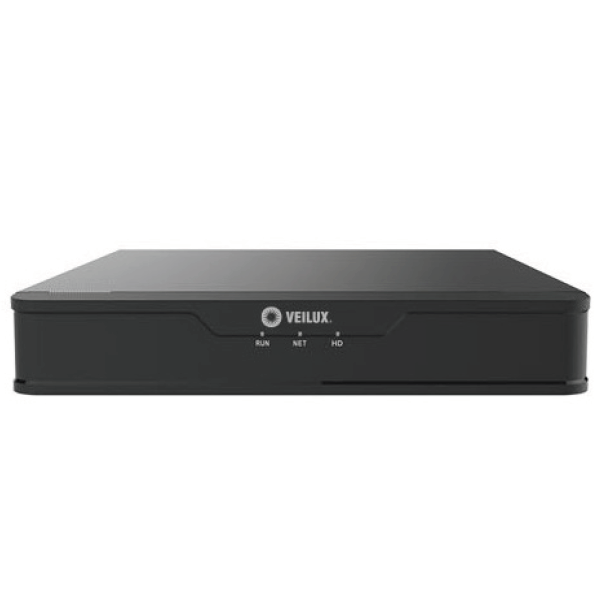

PRO SERIES VPRO-NVR-4-U 4-ch 1-SATA Ultra 265/H.265/H.264 NVR


  • Ultra 265/H.265/H.264 video formats
  • 4 channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA



  • Ultra 265/H.265/H.264 video formats
  • 4 channel input
  • Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
  • Support 1-ch HDMI, 1-ch VGA
  • HDMI and VGA simultaneous output
  • Up to 4K resolution recording
  • 1 SATA HDD up to 6 TB
  • Support cloud upgrade

VIDEO/AUDIO INPUT

IP Video Input

4-ch

Two-way Audio Input

1-ch, RCA

NETWORK

Incoming Bandwidth

64Mbps

Outgoing Bandwidth

64Mbps

Remote Users

128

Protocols

P2P, UPnP, NTP, DHCP, PPPoE

VIDEO/AUDIO OUTPUT







HDMI/VGA Output

HDMI:

3840×2160/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz,

1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz,

1024×768/60Hz VGA:

1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz,

1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

Recording Resolution

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Audio Output

1-ch, RCA

Synchronous Playback

4-ch

Corridor Mode Screen

3/4

DECODING

Decoding Format

Ultra 265, H.265, H.264

Live View/ Playback

4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF

Capability

2 x [email protected], 3 x [email protected], 4 x [email protected], 5 x [email protected],8 x

[email protected], 16 x [email protected]

HARD DISK

SATA

1 SATA interface

Capacity

up to 6TB for each disk

EXTERNAL INTERFACE

Network Interface

1 RJ45 10M/100M self-adaptive Ethernet Interface





USB Interface

Rear panel: 1 x USB2.0,1 x USB3.0

GENERAL

Power Supply

12V DC

Power Consumption: ≤8 W (without HDD)

Working Environment

-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH

(non-condensing)

Dimensions(W×D×H)

260mm × 240mm × 47mm (10.2″×9.4″×1.9 “)

Weight (without HDD)

1.3kg (2.87 lb)
