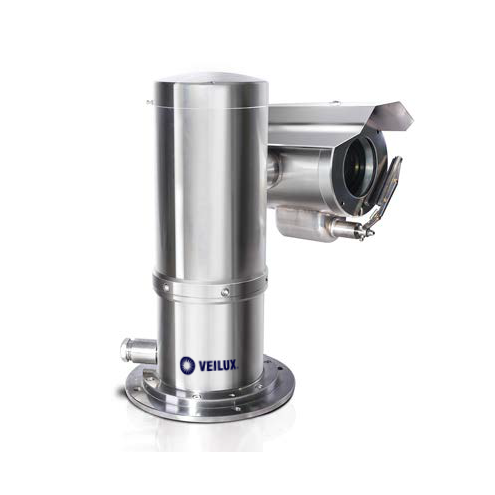

SVEX-1301-2M36X-ZN Explosion-proof Thermal PTZ with 36X IP Camera (DISCONTINUED)


Out of stock

  • 304/316L Stainless Steel
  • IP68-rated Weather Resistance
  • Digital Zoom: 12x; Optical Zoom: 36X
  • 2MP Resolution
  • PTZ Capability
  • Alarm and Audio are optional

This is a special order item. Allow 4-6 weeks for delivery.

The Veilux SVEX-1301-2M36X-ZN Explosion-proof Thermal PTZ with 36X IP Camera features a 2MP lens with 36x zoom. Additionally, the surveillance camera utilizes H.264 and MJPEG compression to efficiently transmit and store data by reducing bandwidth. 304 or 316L stainless steel construction provides exceptional corrosion resistance. Further, the security camera incorporates 360 degree pan and 180 degree tilt for increased control over your viewing angle.


  • Available in either 304 or 306L stainless steel
  • Digital Zoom: 12x; Optical Zoom: 36X
  • 2MP Resolution
  • Resistant to highly corrosive atmospheres
  • explosion-proof housing
  • PTZ Capability
  • Alarm and Audio are optional
  • Integrated cable


Weight 50.7 lbs
Dimensions 12.4 × 11.2 × 14.1 in
Camera Type


IP Rating

Lens Size

4.5 ~ 162mm

Certificate Mark Exd II C T6 GB/DIP A20 TA T6
Certificate No CNEx13 3114
Standards Q/320412 ZAF046-2013
Housing Stainless steel 304 or 316L
Cable thread hole 1pcs G3/4 or NPT3/4
Sun-shield yes
Voltage 100~240 VAC
Power 50W /70W (with thermostat)
Surge Protect Optional
Optical Fiber output Multi mode or signal mode (Optional)
Ambient temperature -25 to +60℃
Air pressure 80Kpa to 106Kpa
Relative Humidity <95%(no condensation)
Communication support analog video output/ IP Output
485 Communication Support Pelco-D Pelco-P
Communicate Rate 2400 to 19200bps
Pan & Tilt
Horizontal 360°
Horizontal speed 01-45°/s
Vertical -90 to +90°
Cruise Scan Support
Keep watch Support
Preset 64/128/255/300
Resume function Support
Auto Cruise Support
Auto Scan Support
Optional Alarm
Alarm Input 2-channel/ 7-channel
Alarm Output 1-channel action with alarm
Intelligent Alarm Audio detective move detective video shield network inte
Optional Audio
Audio Input Audio input (LINE input MIC input) audio peak:2-2 4Vp-p
Audio Output Line-level impedance 600Ω
Network Interface 1pcs of RJ45 support 10M/100M/1000M
Video Compression H 264 main profile / MJPEG
Audio Compression G 722 1/ G 711-a law/ G7 11-u law/MP2L2/G 726
Voice Intercom Support
Stream Support three streams
Internet Protocol IPv4/IPv6 HTTP HTTPS 802 1x Qos FTP SMTP UPnP SNMP
Time Display Support
Standard ONVIF CGI GB/T28181 PISA
IE browser Support IE7 or above Google Firefox Apple
Security Password protection Multiple access control
Effective pixel 2MP
Lens 4.5~162mm 36x optical
Aperture Range F1 6-F44
Angle of view 65 1-2 34 degree (wide -tele)
Min Illumination Color 0 05Lux B/W: 0 01Lux
Day&night Auto/ Color/ BW
S/N ratio > 50dB
Gain off/ lower/ higher
Digital Zoom 12X
White Balance Auto/ Manual/ Auto tracking white balance/ indoor/outdoor
3D DNR Support
Image setting Mirror Saturation Brightness Contrast Sharpness adjusta
Cable integrated cable
Size 316*285*358mm
Weight 23kg
Mounted wall pole
Wall bracket SVEX-1301ZN-WM

SVEX-1301-2M36X-ZN Specs Sheet
