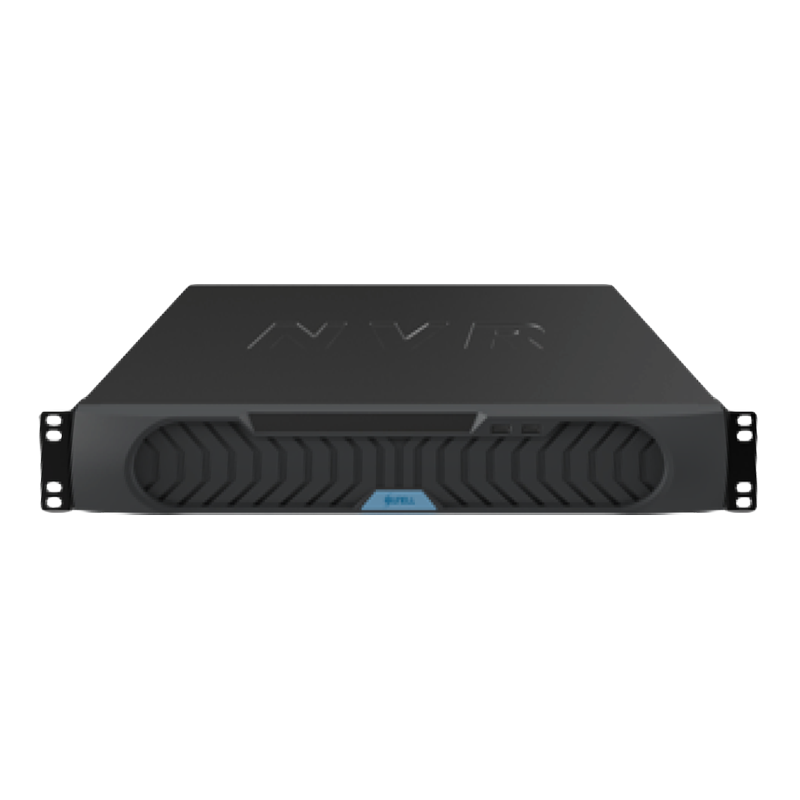

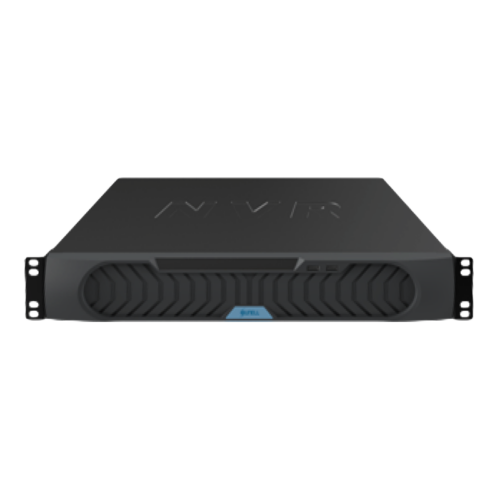

VX-NVR-16-POE 16 Channel Network Device Recorder (DISCONTINUED)

Availability:

Out of stock


  • VX-NVR-16-POE
  • Up to 16ch 1080P IP cameras access
  • Easy to use Same Interface of GUI/WEB/Client
  • 4 SATA hard disk up to 4TB
  • 1RJ45 10M/100M/1000M network interface
  • 16ch POE Ports
  • Simultaneous HDMI&VGA up to 1080P output
  • 3 USB Host
  • 2ch Alarm I/O
  • 1ch Audio I/O
  • 1.5U

This is a Special Order Item – It may take 4-6 weeks

16 Channel Network Device Recorder

Features:

  • Up to 16ch 1080P IP cameras access
  • Easy to use Same Interface of GUI/WEB/Client
  • 4 SATA hard disk up to 6TB
  • 1RJ45 10M/100M/1000M network interface
  • 16CH POE Ports
  • Simultaneous HDMI & VGA up to 1080P output
  • 3 USB Host
  • 2ch Alarm I/O
  • 1ch Audio I/O
  • 1.5U
Weight 8.8 lbs
Video/Audio Input
Video Input 16ch 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/ CIF/QCIF
Incoming Bandwidth 96Mbps, (main stream 72Mps, sub stream 24Mbps)
Outgoing Channel Up to 16ch (Total 72Mbps)
Audio Input G711_A/G711_U
VIDEO/AUDIO OUTPUT
Recording Resolution 6MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/CIF/QCIF
Frame Rate 6MP/5MP/4MP/[email protected]; [email protected](PAL),

30fps (NTSC);

Live View/Playback

Resolution

6MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/CIF/QCIF
Live View/Playback Capacity Live View 16ch D1/4ch 1080P, 1ch 6MP/5MP/4MP/3MP Playback 4ch 1080P,1ch 6MP/5MP/4mP/3MP
HDMI/VGA Output 1920×1080/60Hz, 1280×720/60Hz, 1024×768/60Hz
Audio Output 1ch, Line out
HARD DISk
SATA HDD 4 pcs
Mounting Mode Embedded
Capacity Up to 6TB for each disk
NETWORK
Netwrok Interface 1 RJ45 10M/100M/1000M network interface
Protocol RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS.NTP
POE Interface 16ch 100Mbps, IEEE802.3af
POE Max Power 160W
INTERFACE
HDMI/VGA 1ch HDMI, 1ch VGA
USB USB 2.0 x 2, USB 3.0 x 1
Audio I/O 1ch MIC in, 1ch audio line out
Alarm I/O 2ch Alarm output, 2ch Alarm input
Reset Button Yes
GENERAL
Power Supply AC110/220V, 47-63Hz, Max input 300W
Power Comsumption Max 15W (without HDD,USB,POE)
Operating Temperature -10°C-+45°C
Operating Humidity 0% – 90% RH
Chassis 1.5U
Product Dimensions 440x376x67mm
Product Weight <4kg
