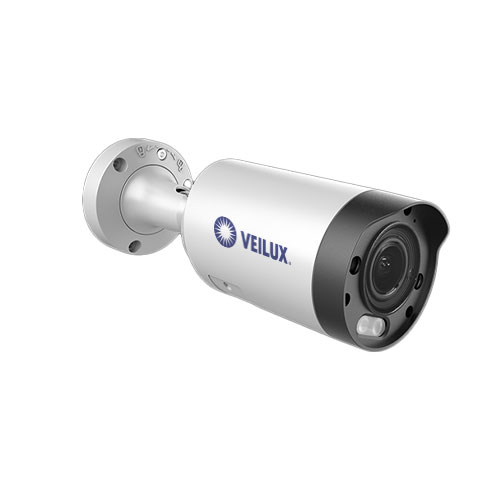

VBIP-4AIZ-PRO-Q 4MP Starlight Motorized Bullet Network Camera with Face Detection


  • High quality imaging with 4MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB
    WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Water and dust resistant (IP67)
  • Built-in microphone, audio and alarm interface available

NDAA Logo

NDAA 2019 complaint means this product does not contain HiSilicon chipsets. HiSilicon is manufactured by telecom company Huawei. The U.S. federal government banned Huawei products from all its facilities to mitigate its security risk.

  • High quality imaging with 4MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB
    WDR technology
  • Focus on human and vehicle targets classification based on deep
    learning
  • Water and dust resistant (IP67)
  • Built-in microphone, audio and alarm interface available
Camera Type

Lens Size

2.7mm~13.5mm

Lens Type

Motorized / Varifocal

Resolution

4MP

CAMERA
Image Sensor 1/2.7″ Progressive scan CMOS Sensor
Min. Illumination 0.006 lux (Color), 0 lux (IR on)
Lens Type&Focal Length Motorized Varifocal lens, 2.7~13.5mm


FOV

horizontal FOV: 110°~38°, vertical FOV: 58°~21°, diagonal FOV: 130°~42°
IR 4pcs Array LED
IR Range 70m
Strobe Light Supported
Smart IR Supported
Shutter Speed Auto/Manual, 1/3~1/10000s
Day/Night IR cut filter with auto switch
Wide Dynamic Range 120dB
Digital Noise Reduction 2D/3D DNR
COMPRESSION STANDARD
Video Compression H.264/H.264+/H.265/H.265+
H.264 Codec Profile Base/Main/High profile
H.265 Codec Profile Main profile
Video Bit Rate 11 Kbps~8 Mbps
Triple Streams Supported
Audio Compression G.711A/G711U
Audio Bit Rate 64 Kbps
Max. Image Resolution 4M(2688 × 1520)




Frame Rate

50Hz: 25fps 4M(2688 × 1520)

25fps 3M(2304 × 1296)

25fps 1080P(1920 × 1080)

60Hz: 30fps 4M(2688 × 1520)

30fps 3M(2304 × 1296)

30fps 1080P(1920 × 1080)



Sub Stream

50Hz: 25fps 720P(1280 × 720)

25fps D1(704 × 576), 25fps CIF(352 × 288)

60Hz: 30fps 720P(1280 × 720)

30fps D1(704 × 480), 30fps CIF(352 × 240)

Third Stream 50Hz: 25fps CIF(352 × 288)

60Hz: 30fps CIF(352 × 240)

Image Setting Brightness/Contrast/Saturation/Hue/Sharpness
BLC Supported
HLC Supported
ROI Supported
Rotate Supported
Defog Supported
NETWORK
Network Storage NAS(NFS/CIFS)


Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, IGMP, UPnP, SMTP, UPnP-TM,

P2P, Bonjour



Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), Video Shelter, Scene Change Detection
Face Detection Supported


Perimeter Protection

Line crossing detection, Area intrusion, Region Entrance, Region Exiting(support alarm triggering by specified target types (human and vehicle))
System Compatibility Open Network Video Interface (Profile S, Profile G, Profile T), SDK
Security Password protection, complicated password, IP address filtering, TLS 1.1/1.2
Web Browsers Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

Mobile Surveillance iPhone®, Android® devices
INTERFACE
Communication Interface 1 RJ45 10M/100M Ethernet port
On-board Storage Micro SD, up to 256GB
Audio I/O 1/1
Alarm I/O 1/1
Built-in Mic Supported
Reset Button Supported
GENERAL
Operating Conditions -30°C ~ 60°C (-22°F ~ 140°F)

Humidity 95% or less (non-condensing)

Power Supply DC12V ± 10%
POE PoE (802.3af)
Power Consumption MAX. 9W
Protection Level IP67
Vandal proof N/A
Dimensions Ø 76×218.9 (mm)
Gross Weight 870g
