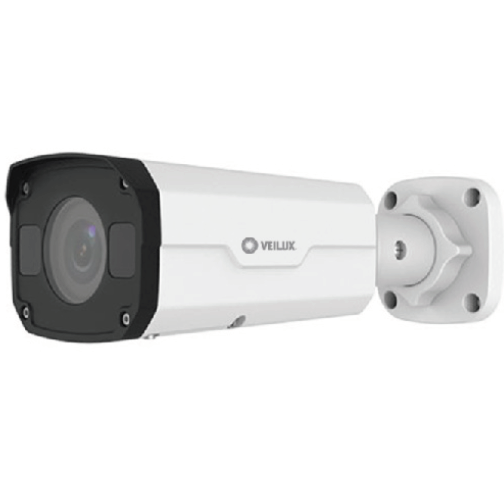

VBIP-5-Z-UE-G 5MP Motorized IR Network Bullet Camera

CAMERA

Sensor

1/2.7″, 5.0 megapixel, progressive scan, CMOS

Lens

2.8 ~ 12mm, motorized zoom lens

DORI

Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63

25.2

12.6

6.3

12

270

108

54

27

Angle of View (H)

105.3° ~ 25.4°

Angle of View (V)

69.5° ~ 18.4°

Angle of View (O)

136.9° ~ 31.2°

Adjustment Angle

Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Color: 0.01Lux (F1.8, AGC ON)

0 Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

S/N

>52dB

IR Range

Up to 30m (98ft) IR range

Wavelength

850nm

IR On/Off Control

Auto/Manual

Defog

Digital Defog

WDR

D-WDR

VIDEO

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile

Baseline profile, Main Profile

Frame Rate

Main Stream: 5MP (2592 x 1944), Max 20fps; Sub Stream: 720P (1280 x 720), Max 20fps

Video Bit Rate

128 Kbps~16 Mbps

OSD

Up to 4 OSDs

Privacy Mask

Up to 4 areas

ROI

Up to 2 areas

Motion Detection

Up to 4 areas


White Balance

Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction

2D/3D DNR

Smart IR

Support

Flip

Normal/Vertical/Horizontal/180°

Dewarping

NA

HLC

Supported

BLC

Supported

STORAGE

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR


Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
