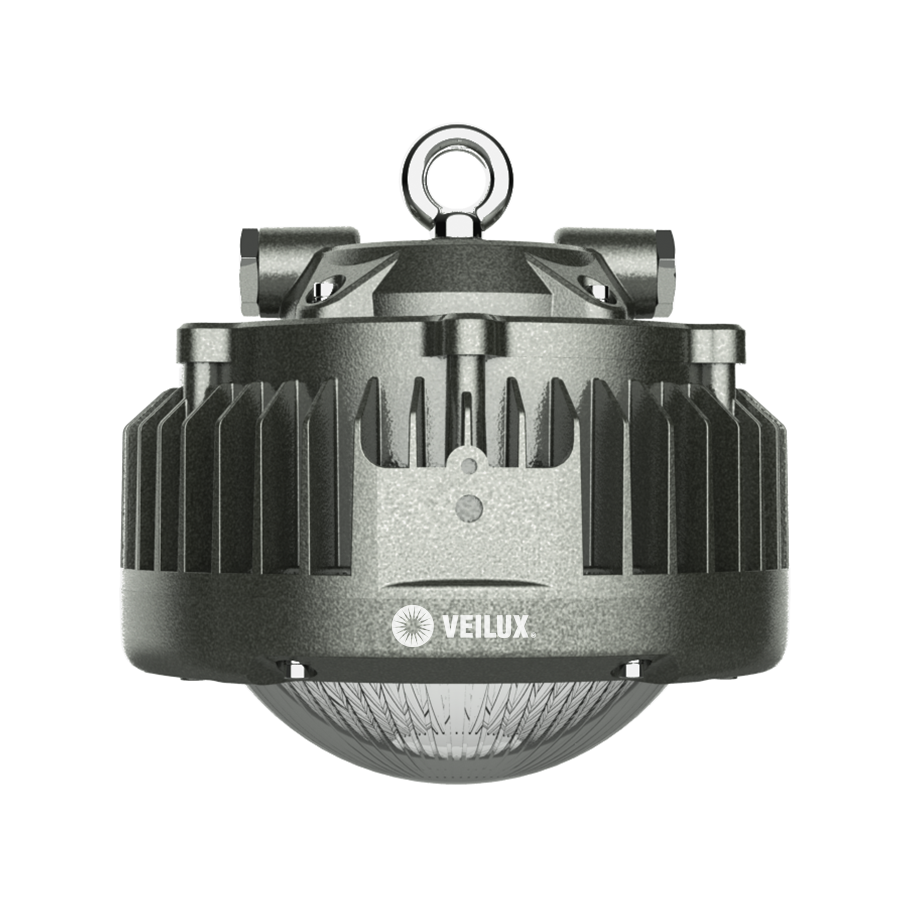

VL-EX30-XX Explosion Proof Sealable Mining Light

  • Input voltage: AC100-270V
  • PF: >0.95
  • CRI: Ra>75
  • Protection Grade: IP66
  • Lumen flux: 120lm/w
  • Anti corrosion: WF2

Models Available:

MODEL VOLTAGE
VL-EX30-20 20W
VL-EX30-30 30W
VL-EX30-40 40W
VL-EX30-45 45W

Features:

  • Input voltage: AC100-270V
  • LED source: Cree
  • PF: >0.95
  • CRI: Ra>75
  • Protection Grade: IP66
  • Lumen flux: 120lm/w
  • Anticorrosion: WF2
  • Weight: 2kg
  • Size: Ø 180x133mm
  • Beam angle: 111.1°
  • Ex-proof Grade: ExdIICT6

Specifications:

Warranty 3 years
CRI 75Ra
IP Rating IP66
Operating Temperature -20°C to 85°C / -4°F~185°F
Storage Temperature -20°C to 85°C / -4°F~185°F
Anti-Corrosion Grade WF2
Light Efficiency 120 Lm
Rated Voltage AC85-265V, AC85-265V
LED’S Operating Life 100000 h
Light Efficiency 250 Lm
Certifications CCC, CE, EMC, LVD, Rohs
Light Source LED
Correlate Color Temperature 3000-6700 K
Color Rendering Index (CRI) 75
LED Chip CREE
Explosion Proof Grade ExdIICT6
Weight 3.2 kg / 7.1 lbs
Size (Diameter x H) Ø 180 x 133 mm / Ø 7.1″ x 5.2″ in.
Weight 7.1 lbs
Dimensions 180 × 180 × 133 in

VL-EX30-XX Spec Sheet

Download

VL-EX30-XX Spec Sheet
