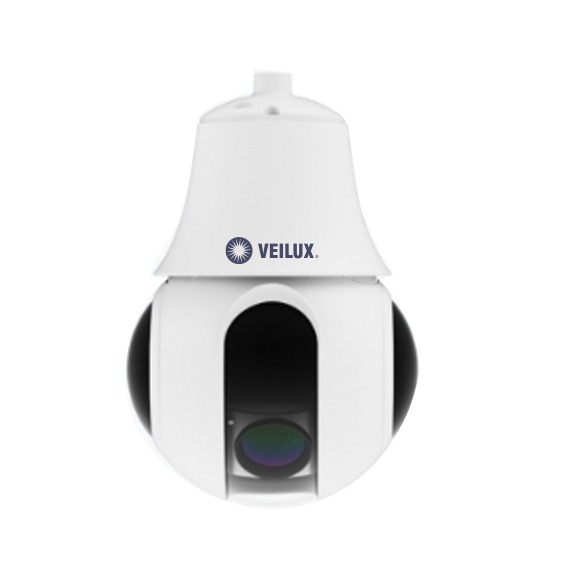

VPIP-5MINI-12X-H5 5MP 12x IR Mini PTZ Network Camera


• 1/2.8″ progressive scan CMOS
• 12x optical zoom,16x digital zoom
• 5MP (2560 x 1920) @ 25/30fps
• Multiple streams
• 3D DNR, WDR, ICR, IVS, Defog
• Auto tracking
• Smart IR range up to 80 m
• IP66

CAMERA

Sensor

1/2.8” Progressive Scan CMOS

Effective Pixels

2560(H) x 1920(V)

Electronic Shutter

Auto/Manual, 1/5 ~ 1/20,000s

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0 Lux @ (IR LED ON)

S/N Ratio

55dB

Day/Night

Auto(ICR)/Day / Night/Timing

Wide Dynamic Range

WDR 120 dB

IR Range

Smart IR, Up to 80 m (262.5 ft)

IR On/Off Control

Auto/Manual

LENS

Focal Length

4.7 ~ 56.4 mm

Max. Aperture

F1.6 ~ F3.0

Angle of View

H: 60.9°~6.43°, V: 40.1°~4.1°

Optical Zoom

12x

Digital Zoom

16x

Focus Control

Auto/Manual

VIDEO

Max. Resolution

5MP (2560×1920)

Streaming Capability

3 Streams



Stream/Frame Rate

Stream1: 2560×1920/2048×1536/1280×960 @25/30fps

Stream2: D1/VGA/640×360/CIF/QVGA @ 25/30fps Stream3: VGA/CIF/QVGA @ 25/30fps

Bit Rate Control

CBR/VBR



Bit Rate

Stream1: 200kbps~12Mbps Stream2: 100kbps~6Mbps Stream3: 100kbps~3Mbps

Image Enhancement

HLC / BLC / Anti-shake / WDR

Noise Reduction

2D/3D DNR

Region of Interest

Off/On (8 Zone, Rectangle)

Motion Detection

Support

Smart IR

Off/On (4 Area, Rectangle)

PTZ

Pan/Tilt Range

Pan: 0° ~ 360° endless, Tilt: -10° ~ +90°

Manual Control Speed

Pan: 0.1° ~ 180°/s, Tilt: 0.1° ~ 90°/s

Preset Speed

Pan: 180°/s, Tilt: 90°/s

Presets

300

PTZ Mode

6 Track, 12 Tour, 12 Scan,

Speed Setup

Auto/Manual (0-8)

Power up Action

Support

Idle Motion

Activate Preset/ Scan/ Tour/ Track if there is no command in the specified period

NETWORK

Protocols

IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP

Interoperability

ONVIF, SDK, CGI

Streaming Method

Unicast

Max. User Access

10 Users

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

SKU: VPIP-5MINI-12X-H5 Categories: , Tags: , , , , , , ,

VPIP-5MINI-12X-H5
