Engineering guide for facilities with both Class I (flammable gas) and Class II (combustible dust) Division 2 hazardous areas — camera selection, dual-listed equipment, and NEC compliance for mixed-hazard zones.

Side-by-side comparison of purge-and-pressurize, explosion-proof, and intrinsically safe protection concepts for cameras and instrumentation in Class I hazardous locations.

NEC Article 500 (Division system) and Article 505 (Zone system) are two parallel classification approaches for gas and vapor hazards in the same codebook — either can be used for Class I locations, but not mixed within a single area. Article 510 is not a classification system — it applies specific rules to gasoline dispensing stations and service stations, which may use either Article 500 or 505 for classification. Understanding when to use each article prevents AHJ disputes and ensures global equipment compatibility.

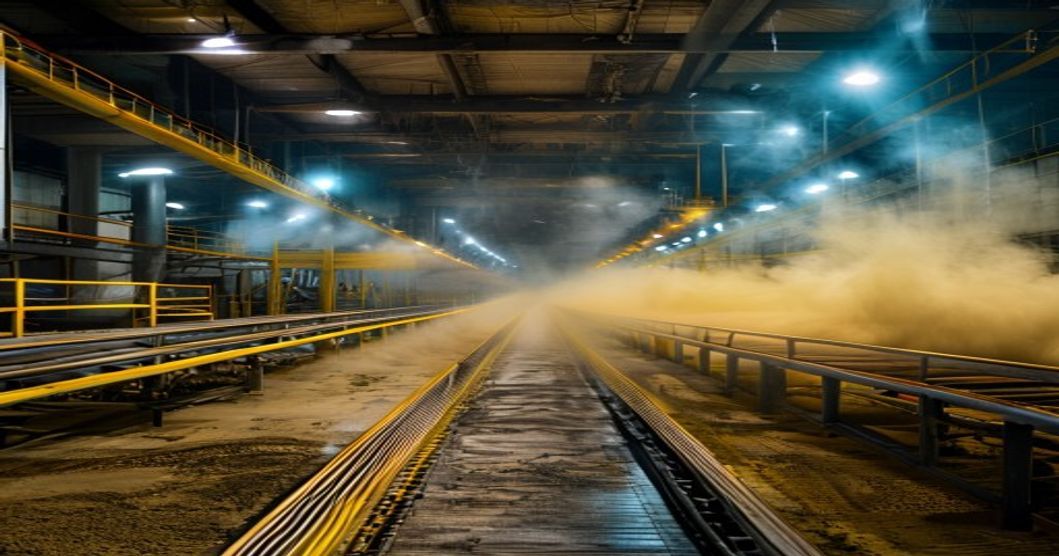

Zone 20 (continuous dust cloud), Zone 21 (occasional dust cloud), and Zone 22 (infrequent dust cloud) are the IEC/ATEX classifications for combustible dust hazardous areas — equivalent to NEC Class II Divisions 1 and 2. Equipment for dust zones carries dust group markings (IIIA, IIIB, IIIC) and a separate temperature class for dust layers, which is often more restrictive than the cloud ignition temperature.

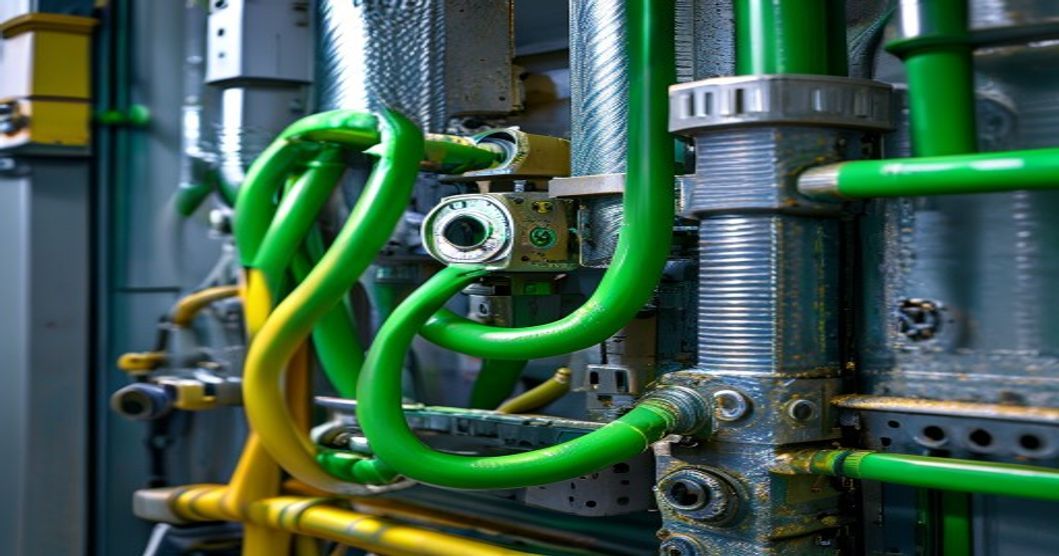

Proper grounding and bonding of explosion-proof camera systems prevents static discharge ignition and ensures the equipment grounding conductor (EGC) path is intact throughout the conduit system. NEC Article 501 requires bonding at every enclosure in Class I locations. IEC 60079-14 requires that all metallic enclosures in hazardous zones be bonded to the equipotential bonding system. Ground loops introduced by improperly bonded conduit systems cause video interference and safety hazards simultaneously.

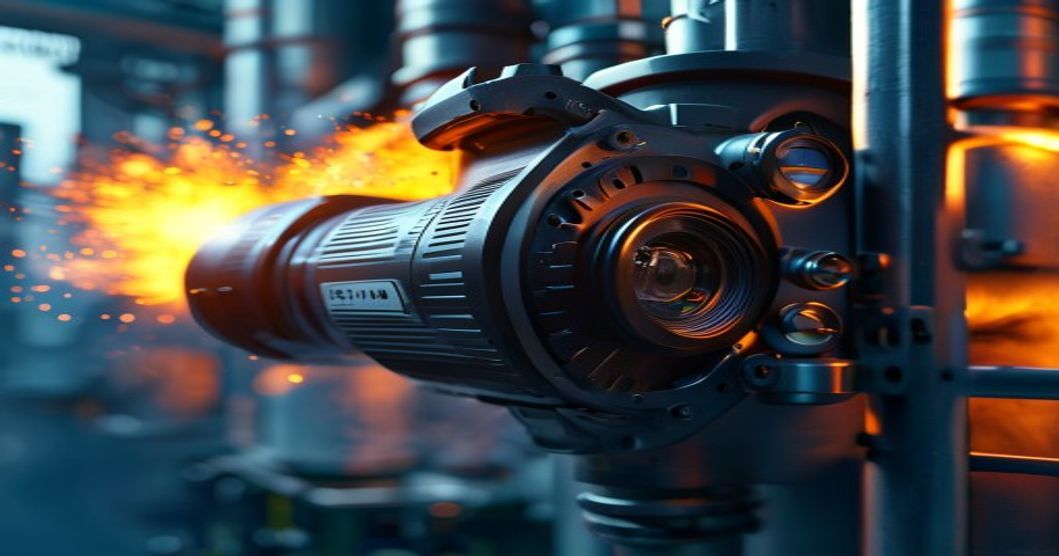

ATEX is a European Union directive that is legally mandatory for equipment placed on the EU market. IECEx is an international voluntary certification scheme administered by the IEC. Both are based on the same IEC 60079 technical standards, making dual-certified equipment technically equivalent. For global projects, specifying cameras with both ATEX and IECEx certification eliminates compliance gaps across regions.

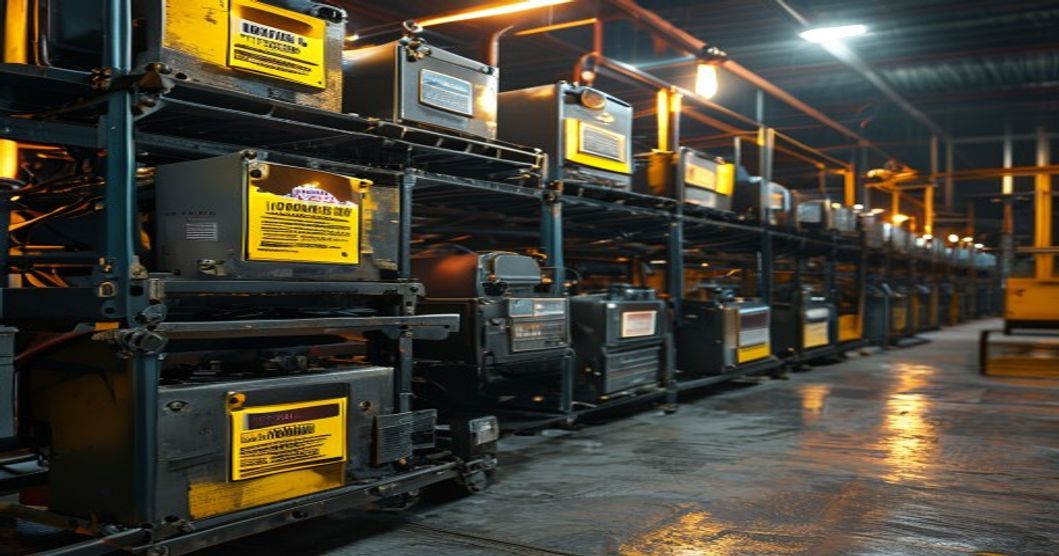

ATEX Category 1 equipment is approved for Zone 0 (gas) or Zone 20 (dust) — the most hazardous zones. Category 2 covers Zone 1/21, and Category 3 covers Zone 2/22. Selecting the wrong category for a zone is a compliance violation. Most explosion-proof cameras are Category 2, rated for Zone 1 and Zone 2 installations.

NEC Article 500 uses a Division system (Division 1 and Division 2) to classify Class I, II, and III hazardous locations. Article 505 uses a Zone system (Zone 0, 1, and 2) aligned with IEC 60079. Article 500 dominates legacy US facilities; Article 505 is increasingly used on new construction and facilities operating under both US and international standards.

IP66, IP67, IP68, and IP69K each specify a different level of protection against water ingress. For most outdoor explosion-proof camera installations, IP66 is the minimum. IP67 and IP68 add immersion resistance for flood-prone or underground areas, while IP69K is required where high-pressure washdowns are performed.
