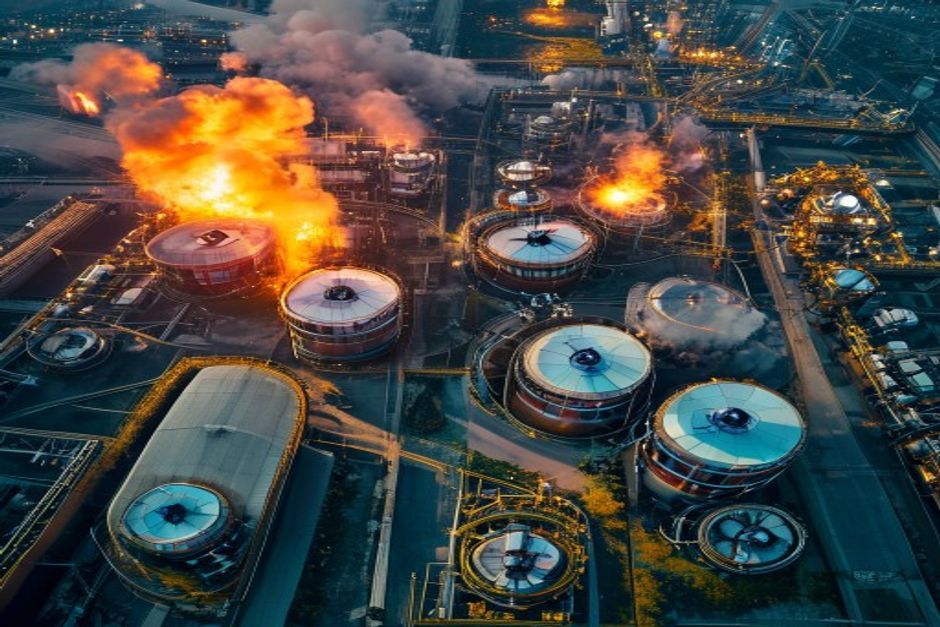

Aboveground storage tank farms containing flammable and combustible liquids present high-risk environments for industrial fire and explosion. API RP 505, NFPA 30 (Flammable and Combustible Liquids Code), and NEC Article 500 establish the area classification framework at these facilities. Explosion-proof cameras for tank farms must be rated for the appropriate Class I Division or ATEX Zone based on proximity to tank vents, floating roof seals, pump houses, and loading racks.
A well-designed tank farm camera system integrates optical explosion-proof cameras for perimeter security and operator oversight with thermal imaging cameras for early vapor cloud and hot-spot detection. Insurance underwriters for petroleum storage facilities increasingly require demonstrated video surveillance as a loss prevention control.
API RP 505 Hazardous Zone Classification for Aboveground Storage Tanks
| Tank Type / Location | NEC Classification | Zone Extent |
|---|---|---|
| Fixed cone roof — vapor space | Class I Div 1 Group D | Full interior |
| Fixed cone roof — vent opening | Class I Div 1 Group D | 1.5 m (5 ft) radius |
| Fixed cone roof — beyond vent | Class I Div 2 Group D | 1.5–3 m from vent |
| External floating roof — above deck | Class I Div 1 Group D | Full open-top area |
| External floating roof — dike | Class I Div 2 Group D | Dike area |
| Pump house (flammable service) | Class I Div 1 Group D | Full interior |
| Truck loading rack — fill point | Class I Div 1 Group D | 5 ft radius of fill |
Thermal vs. Optical Cameras for Tank Farm Surveillance
Tank farm surveillance systems increasingly combine optical and thermal explosion-proof cameras. Optical cameras provide high-resolution footage for security, incident investigation, and loading/unloading oversight. Thermal cameras provide early warning of hydrocarbon vapor clouds above floating roof seals, overheating pump bearings, and night-time intrusion detection independent of lighting.
For large floating roof tank farms, a single explosion-proof PTZ thermal camera on a high mast can survey multiple tanks in sequence, detecting anomalies that fixed cameras miss. Combined with fixed optical cameras at loading racks and pump houses, this approach delivers comprehensive coverage at lower total installed cost than all-optical systems.
Camera Coverage Planning for Tank Farms
Each tank in the farm should be covered by at least one optical camera positioned to show the entire tank shell and roof. Loading rack cameras should cover both the fill point area (Class I Div 1) and the approach/departure path for vehicles. Perimeter cameras covering the dike wall exterior can be positioned in unclassified areas, avoiding the need for Class I rated enclosures at these locations.
See also: Thermal vs. Optical Camera Comparison | Coverage Planning Guide
Frequently Asked Questions
What API standard governs area classification for aboveground storage tanks?
API RP 505 is the primary standard for area classification at petroleum tank farms. For fixed cone roof tanks storing Class I flammable liquids, the vapor space is Division 1, the vent opening within 1.5 meters is Division 1, and the area from 1.5–3 meters from the vent is Division 2.
Do explosion-proof cameras inside a tank dike need Division 1 certification?
API RP 505 typically classifies tank dike interiors as Zone 2 (Division 2). Division 2 or Zone 2 cameras are the minimum requirement. Division 1 cameras also satisfy this requirement. The classification may be upgraded if a credible release scenario exists within the dike.
What camera positions provide optimal floating roof tank monitoring?
Cameras at tank rim level monitor pontoon condition and seal integrity. PTZ cameras on masts adjacent to the tank farm cover multiple tanks from single locations. Thermal cameras detect hydrocarbon vapor above floating roof seals before optical leaks are visible.
Are thermal cameras required for tank farm perimeter monitoring?
No code specifically requires thermal cameras for tank farm perimeters. However, they detect hydrocarbon vapor plumes and heat anomalies that optical cameras miss. Many insurance underwriters recommend thermal cameras for large flammable liquid storage facilities as a fire loss prevention measure.
What is the required separation distance from tank vents for explosion-proof cameras?
Per API RP 505, Zone 1 (Division 1) extends 1.5 meters (5 feet) from an open vent on a fixed roof tank storing Class I flammable liquid. Zone 2 extends 3 meters (10 feet). Cameras within 1.5 meters require Division 1 rating. Cameras beyond 3 meters may be in an unclassified area depending on the vent type.
