Selecting the correct power delivery method — explosion-proof IP camera PoE, 24VAC, or DC — affects wiring cost, network integration, ground loop risk, and the total installed cost of your hazardous area CCTV system.
Overview: Power Options for Explosion-Proof IP Cameras
Explosion-proof IP cameras can be powered in three primary ways: Power over Ethernet (PoE), 24VAC (a legacy standard inherited from analogue CCTV), and low-voltage DC (12VDC or 24VDC). Each method has different wiring requirements, cable types, maximum run lengths, and compatibility with hazardous area cable entry devices (CEDs).
In hazardous classified areas, every cable penetration through the explosion-proof housing must use a certified cable gland or conduit seal. The number of cable penetrations directly affects housing certification complexity. PoE is increasingly preferred because it delivers data and power through a single Cat6 cable, reducing the number of gland entries from two (separate power and data cables) to one. This simplification has measurable safety and installation cost benefits.
Power delivery choice also affects maximum cable run length. PoE is IEEE 802.3bt limited to 100 m for standard PoE++ at full load; longer runs require PoE extenders or midspan injectors. 24VAC can run on two-core cable to 300 m or more with minimal voltage drop on adequately sized wire. This makes 24VAC still relevant in sprawling refinery and tank farm environments where explosion-proof cameras may be 150–250 m from the nearest network closet.
Power Method Comparison Table
| Power Method | Cable Type | Max Run (standard) | Cable Gland Entries | Typical Power Budget |
|---|---|---|---|---|
| PoE (802.3af) Class 3 | Cat5e/Cat6 STP | 100 m | 1 (combined data+power) | 15.4 W at PD |
| PoE+ (802.3at) Class 4 | Cat5e/Cat6 STP | 100 m | 1 | 30 W at PD |
| PoE++ (802.3bt) Class 6 | Cat6A STP | 100 m | 1 | 60 W at PD |
| 24VAC | 2-core shielded | 300+ m | 2 (power + data separate) | Unlimited (transformer-fed) |
| 12/24VDC | 2-core shielded | 50–150 m (voltage drop limited) | 2 | Unlimited (PSU-fed) |
Industrial Applications: Oil & Gas, Chemical Plants, Mining
In oil and gas upstream and midstream facilities, PoE is now the dominant power method for explosion-proof IP cameras in new installations. Modern IP cameras with high-resolution sensors, built-in IR illuminators, and local analytics can draw 15–25 W, fitting within PoE+ (802.3at) budget. The single Cat6 STP cable simplifies the classified area cable penetration to one gland entry, reducing both the bill of materials and the certification verification burden for each housing installation.
However, long-haul runs across large refineries or between processing units may still be impractical with standard 100 m PoE limits. In these cases, site engineers use one of three approaches: fibre-optic media converters (the preferred method, as fibre is intrinsically safe in most configurations), PoE extenders rated for the classified area, or conventional 24VAC transformers mounted at the camera pedestal.
In chemical plants, 24VAC power is still found in legacy systems installed before PoE IP cameras became common. When retrofitting explosion-proof IP cameras onto existing infrastructure, many plants re-use the existing 24VAC power infrastructure and add a separate Cat6 data cable, accepting the dual-gland penalty to avoid replacing wiring.
Mining applications frequently use DC power distributed from central UPS systems in underground environments. 24VDC explosion-proof cameras allow longer runs than 12VDC and are compatible with standard industrial UPS battery banks, providing continuity of surveillance during power events — a critical requirement in underground emergency scenarios.
Selection Guide
- New installation, run <100 m: PoE+ explosion-proof IP camera is the cleanest, most cost-effective solution. Single cable, single gland, direct network integration.
- Run 100–300 m or more: Fibre-optic backbone with PoE media converter at the camera, or 24VAC power with separate data cable. Fibre is preferred for EMC immunity in process areas with heavy electrical equipment.
- Retrofit onto existing 24VAC infrastructure: Select explosion-proof IP cameras with dual-input capability (PoE and DC) and use the existing power wiring with a new data cable.
- High-power PTZ or heated housings: PoE++ (802.3bt) Class 6 or 8 for up to 60 W or 90 W respectively, or external DC power for unlimited power budget.
Key Takeaways
- PoE explosion-proof IP cameras simplify classified area installations with a single Cat6 cable and single housing penetration for data and power.
- Standard PoE is limited to 100 m cable runs — use fibre media converters or PoE extenders for longer distances in large facilities.
- 24VAC power supports runs of 300 m or more and remains relevant for retrofits and long-haul explosion-proof IP camera installations.
- 12VDC and 24VDC are common in mining and underground applications where DC UPS infrastructure exists.
- PoE++ (802.3bt) supports up to 90 W, enabling heated explosion-proof housings and high-power PTZ cameras on a single Cat6A cable.
Frequently Asked Questions
Can I run PoE to an explosion-proof camera in a Class I Division 1 area?

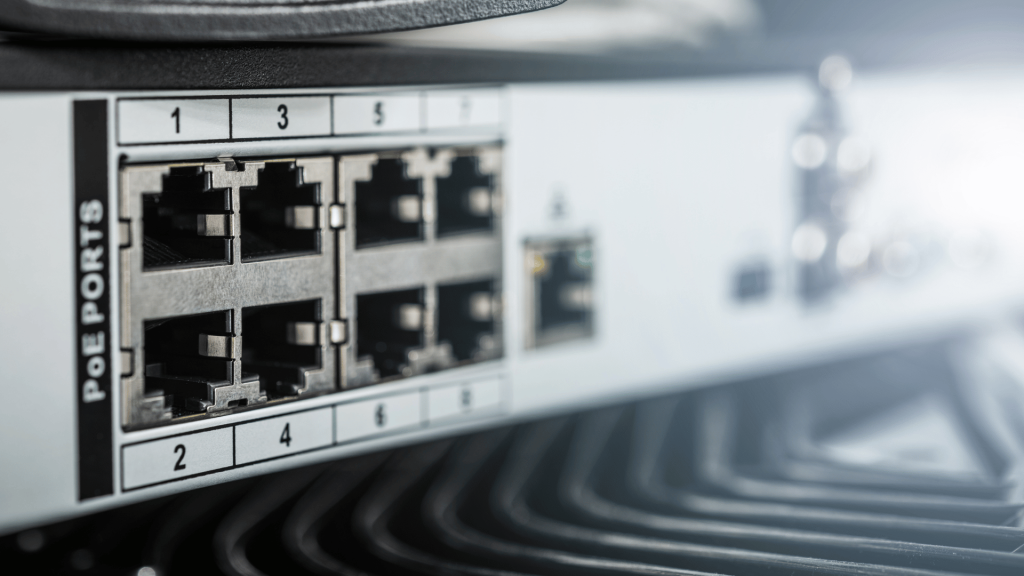

Yes. PoE delivers power and data over a standard Cat6 STP cable, and the cable is terminated at the explosion-proof housing via a certified cable gland rated for the hazardous area classification. The PoE switch or injector at the other end sits in a safe area. The cable itself is not intrinsically safe unless specifically designed as IS, but properly installed in conduit or with armoured cable meets NEC and ATEX requirements.
What happens if a PoE explosion-proof camera needs more power than the switch provides?
The camera will either not power on or will reduce functionality (disabling IR illuminators or heaters) to stay within the available power budget. Always calculate the camera’s maximum power draw including all features (IR, heater, defogging) and select a PoE switch port that exceeds this figure by at least 20%.
Is fibre-optic cable intrinsically safe for use in classified areas?
Fibre-optic cables carry light, not electrical current, so they do not create electrical sparks. They are generally considered suitable for use in classified areas without intrinsic safety certification for the cable itself. However, any electrical equipment (media converters, transceivers) at each end must still be certified for the appropriate hazardous area if located within the classified zone.
Can 24VAC and PoE share the same conduit in a hazardous area?
This depends on local electrical codes and the conduit fill capacity. NEC Article 300 governs conduit sharing between circuits of different voltages. In practice, many installers run separate conduit runs for power and data in classified areas to simplify maintenance and avoid interference. Verify with your local AHJ (Authority Having Jurisdiction).
What PoE standard do most explosion-proof IP cameras require?
Most standard explosion-proof IP cameras (fixed, without heaters) require 802.3af (PoE, up to 15.4 W) or 802.3at (PoE+, up to 30 W). Cameras with built-in IR illuminators, PTZ mechanisms, or internal heaters may require PoE+ or PoE++. Always check the camera’s datasheet for maximum power consumption before selecting your PoE infrastructure.
