The NVR/VMS Decision for Hazardous-Location Camera Systems
The explosion-proof cameras are the most visible components of a hazardous-location surveillance system, but the NVR (Network Video Recorder) and VMS (Video Management System) are equally critical for effective operations. A poorly specified NVR creates storage gaps, causes video quality degradation, or fails during the incidents where recordings are most needed. An overpowered VMS with features the facility will never use wastes capital and creates unnecessary licensing complexity.
This guide focuses specifically on the NVR/VMS selection decisions most relevant to Class I Division 1 camera systems — storage sizing for high-resolution industrial cameras, physical placement options relative to classified areas, and VMS platform evaluation criteria.
Placement: NVR Inside or Outside the Classified Area?
The first architectural decision is where to physically locate the NVR relative to the hazardous area. Three options:
Option 1: NVR in Safe (Non-Classified) Equipment Room
The most common and cost-effective approach. The NVR is installed in a Class E (non-hazardous) control room or equipment room, connected to explosion-proof cameras via Cat6 or fiber runs. This allows use of standard commercial NVR hardware without explosion-proof enclosures.
Limitation: Cable runs from cameras in the classified area to the NVR in the control room can be long — verify total run length stays within the camera system’s maximum cable distance specification.
Option 2: NVR in Explosion-Proof or Purge-and-Pressurize Enclosure in Classified Area
For facilities where control room space is limited or where locating the NVR closer to cameras reduces cable run lengths, the NVR can be housed in a purge-and-pressurize (P&P) cabinet inside the classified area. Type X P&P systems allow standard commercial NVR equipment to be installed safely in a Division 1 area.
Consideration: Requires continuous purge gas supply (instrument air or nitrogen) and a purge controller. NVR reboots or power failures require a purge cycle before the NVR enclosure is opened for maintenance.
Option 3: NVR on a Dedicated VLAN in the OT Network Room
For facilities with an existing OT network room (typically a prefabricated electrical building or EHV substation), the NVR can be co-located with DCS/SCADA infrastructure if proper VLAN segmentation and cybersecurity controls are implemented. See the explosion-proof camera network architecture guide for VLAN segmentation details.
NVR vs. VMS + Server Architecture
Two fundamental architectures exist for IP camera recording:
- Dedicated NVR appliance: Purpose-built hardware with embedded recording software. Examples: Hikvision DS-96000, Axis S3008, Hanwha Wisenet NVR. Advantages: single-vendor support, simple configuration, no Windows server administration. Best for: systems under 64 cameras with limited analytics requirements.

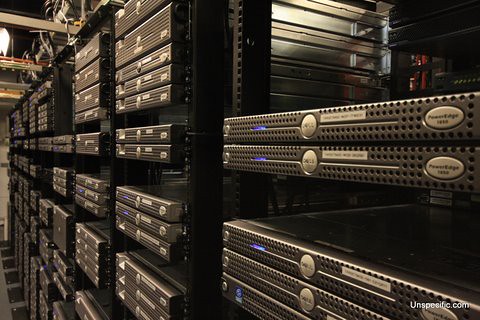

- VMS software on server hardware: Enterprise VMS platforms (Milestone XProtect, Genetec Security Center, Avigilon Control Center) run on standard Windows Server hardware. Advantages: unlimited scalability, advanced analytics, multi-site federation, integration with access control and DCS alarms. Best for: large systems (64+ cameras), multi-site deployments, complex analytics requirements.
For Class I Division 1 systems, the physical server or NVR is equally suitable for both architectures — the choice is driven by scale and feature requirements, not by the hazardous-location classification.
Storage Sizing for Industrial Explosion-Proof Camera Systems
Industrial cameras in refineries and chemical plants record at higher resolution than typical commercial security installations. The storage calculation must account for this.
Step 1: Determine per-camera bitrate
Representative bitrates for explosion-proof cameras in industrial environments:
- 2 MP fixed camera, H.265, 15 fps: 2–3 Mbps average
- 4 MP fixed camera, H.265, 15 fps: 3–5 Mbps average
- 4K (8 MP) PTZ, H.265, 25 fps: 8–12 Mbps average
In process areas with constant activity (flame, steam, vehicles), bitrate is higher than in areas with minimal motion. Use 5 Mbps as a conservative average for 4 MP cameras in active process areas.
Step 2: Calculate total daily storage
Formula: (Number of cameras) × (bitrate Mbps) × (3600 seconds/hour) × (24 hours) / (8 bits/byte) / (1,000,000,000 bytes/TB)
Example: 30 cameras × 5 Mbps × 86,400 seconds / 8 / 1,000,000,000 = 1.62 TB per day
Step 3: Apply retention period
Industry standards vary by application:
- OSHA PSM facilities: typically 30–90 days recommended for incident investigation
- Process safety events (MoC documentation): some facilities retain indefinitely for specific camera angles during process changes
- General surveillance: 30 days minimum, 90 days preferred
For 30 cameras at 1.62 TB/day × 30-day retention = 48.6 TB raw storage. With RAID-6 overhead (approximately 25% parity), plan for 65 TB raw disk.
RAID Configuration for NVR Storage
- RAID-6: Can tolerate two simultaneous disk failures. Recommended for NVRs with 6+ drives. Write performance adequate for up to ~200 Mbps sustained writes.
- RAID-5: Single-disk failure tolerance. Acceptable for smaller systems (4–6 drives). Do not use for high-resolution systems — rebuild time during a disk failure can result in a second failure before rebuild completes.
- JBOD with NVR software RAID: Some VMS platforms implement their own disk failure tolerance at the software level, allowing disk replacement without a full RAID rebuild.
VMS Platform Comparison for Industrial Use
| Platform | Best For | ONVIF | DCS Integration | Licensing Model |
|---|---|---|---|---|
| Milestone XProtect Corporate | Large multi-site | Profile S/T/G | OPC UA, API | Per-camera perpetual |
| Genetec Security Center | Unified security management | Full | SDK integration | Per-camera subscription or perpetual |
| Avigilon Control Center | Analytics-heavy deployments | Full | Limited | Per-camera perpetual |
| Hanwha Wisenet Wave | Hanwha camera-native | Partial | Limited | Per-camera perpetual (included) |
| Bosch Video Management System | Bosch ecosystem | Full | BACnet, Modbus | Per-camera perpetual |
Redundancy for Safety-Critical Coverage
In facilities where video surveillance supports emergency response, single-NVR architectures are insufficient:
- Hot standby NVR: Secondary NVR receives the same video streams simultaneously. On primary failure, operators switch to secondary in under 60 seconds.
- Camera-side SD card failover: Modern XP cameras with onboard SD card continue recording locally if the NVR connection is lost. Video is uploaded to NVR when connection restores.
- UPS backup: NVR, network switches, and cameras should remain powered during utility power failures via UPS. Size UPS for at least 15 minutes — long enough for emergency generator to start and transfer.
Frequently Asked Questions
- How many cameras can one NVR handle?
- Dedicated NVR appliances are typically rated for 16, 32, 64, or 128 channels. The channel limit is a licensing and hardware constraint. Bandwidth is typically more limiting than channel count — a 64-channel NVR is usually specified for 200–400 Mbps sustained recording bandwidth. A 64-camera system at 5 Mbps/camera = 320 Mbps, which fits within a typical 64-channel enterprise NVR specification.
- Do I need a separate NVR for explosion-proof cameras vs. standard cameras?
- No. IP explosion-proof cameras communicate via standard RTSP/ONVIF protocols, identical to standard IP cameras. They connect to the same NVR as non-hazardous-location cameras. There is no technical requirement for a separate NVR — the hazardous classification applies only to field equipment, not to the NVR in the control room.
- What is the minimum retention period for OSHA PSM facilities?
- OSHA PSM (29 CFR 1910.119) does not specify a minimum camera retention period. However, PSM Appendix C (compliance guidelines) and industry best practices from the Center for Chemical Process Safety (CCPS) recommend retaining video evidence for at least 30 days to support incident investigation (required within 48 hours of an incident under 1910.119(m)). Many facilities retain 90 days for critical camera angles.
