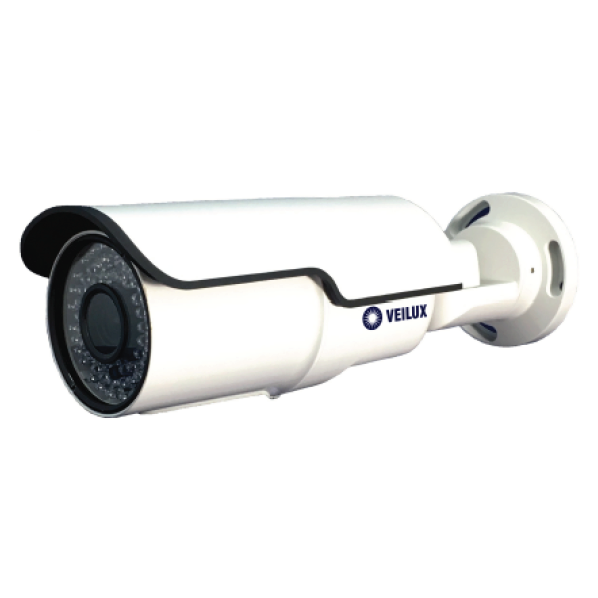

Veilux VB-2HDIR72V-4N1 TVI Bullet Camera

  • Lens: Equipped with 3 Axis Lens
  • Motion Detection
  • Privacy Mask Function
  • 2.8-12mm TDN Electric DC Iris Varifocal Lens
  • Video Output: AHD/ TVI/ CVI/ CVBS
  • IR Night View Distance up to 80m


The Veilux VB-2HDIR72V-4N1 Bullet Camera features a progressive scan CMOS with a 2.4MP lens. Additionally, the surveillance camera incorporates IR LEDs to capture clear footage at nighttime and during low lighting conditions out to 80m. Motion detection ensures that you never miss a suspicious event and can help save on storage space. Further, the varifocal camera has a privacy mask function to block out areas you don’t want to record.


  • Full HD resolution 1920 X 1080 P
  • Minimum illumination: 0.003 Lux (AGC ON), 0 Lux IR on
  • Support AHD/TVI/CVI/CVBS 4-in-1 signal
  • Video output: TVI/AHD/CVI (1080P) & CVBS 960H can be switched freely by OSD
  • OSP antioxidant PCB, power/video dual lightning protection design
  • OSD menu control through the coax cable (UTC)
  • Day/Night (ICR), AWB, AGC, BLC
  • 2D/3D-DNR, multi-levels adjustable
  • Motion Detection, Privacy Mask, Mirror, Defog, Flip
  • Built-in IR LED 72 pcs (Night View Distance 70-80 meters)
  • 2.8-12mm TDN Electric DC Iris Varifocal Lens
  • Aluminum body construction
Weight 0.95 lbs
Dimensions 2.3 × 3.9 × 2.5 in
Camera Type

Cameras Signal Type




Lens Size

2.8 ~ 12mm

IR Lighting Distance

IP Rating

Image Sensor 1/2.9” 2.4 Mega Pixel Sony CMOS Sensor
Scanning System Progressive
Resolution Digital: 1920Hx1080P, 25/30 FPS Analog: 1200 TVL NTSC / PAL
Effective Pixels 1920 (H) X 1080 (V)
Shutter Speed Auto (1/50(1/60) ~ 1/50,000)
Min. Illumination 0.003 Lux (Color) (0 Lux IR LED ON)
S/N Ratio >50dB (AGC off)
AGC Supported (1- 5 Levels)
OSD Menu Multi languages OSD menu control up to the coaxial cable (UTC)
Day & Night Auto/ Color/ (B&W)/ Ext (OSD switch)
White Balance Auto
Backlight 1 – 16 Levels
Mirror Off/ H/ V/ H&V/ Rotate
HLC On/ Off
Privacy Zone 2 Areas
Motion Off/ On
LSC On/ Off
Language Info
Day & Night System ICR
Video Output Support AHD/TVI/CVI?CVBS 4 in 1 signal
IR Led 72 units
Night View Distance Night View Distance 70-80 meters
Lens 2.8-12mm TDN Electric DC Iris Varifocal Lens
Power Consumption DC12V Less than 150mA
Temperature Operating -4°F to 140°F (-20°C to 60°C)
Temperature Storage -4°F to 140°F (-20°C to 60°C)
Operating Humidity Less than 95% (non-condensing)
IP Rating IP66
Dimensions (WxDxH) 2.3” x 3.9” x 2.5” [ 6cm x 10cm x 6.5cm ]
Unit Weight 0.75 Ib (0.340 kg)

VB-2HDIR72V-4N1 Spec Sheet
