VS-70 Box Camera with 760 TVL (DISCONTINUED)

Availability:

Out of stock


  • Digital Zoom
  • Digital Image Stabilizer
  • AF Detector
  • Lens Shading Compensation
  • Motion Detection
  • Sense Up
  • Privacy Zone Mask

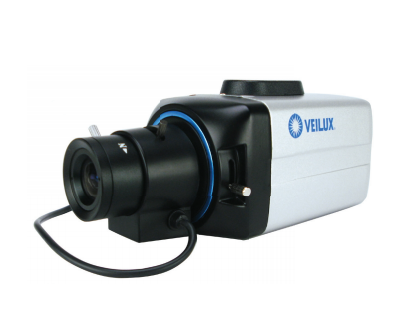

The Veilux VS-70 Box Camera has over 760 TV lines and is loaded with features. It is a Day/Night camera with a removable IR cut filter which provides excel-lent clarity in color during the day and an exceptional black and white picture at night. It features back light compensation, 3D DNR (Digital Noise Reduction), and WDR (Wide Dynamic Range). Additionally, it will automatically clean up an interference or wash out caused by overly contrasting lights.

Features:

  • High Resolution 700 TV Lines
  • 01 Lux
  • WDR
  • EZoom
  • Motion Detection
  • DIS
SKU: VS-70 Category: Tags: , , , ,
Weight 0.75 lbs
Camera Type

Cameras Signal Type

Analog

Sensor 1/3” Sony CCD EFFIO-P
Signal System NTSC / PAL
Max Pixels 1020(H) x 508(V) (NTSC)

1020(H) x 596(V) (PAL)

Effective Pixels 976(H) x 494(V) (NTSC)

976(H) x 582(V) (PAL)

Min. Illumination 0.01 Lux
Video Output Level 1.0Vp-p/75 Ω
Horizontal Resolution 700TVL
S/N More than 48dB(AGC off)
Gain Control Auto
BLC BLC & HSBLC
WDR Full, Normal, Light
White Balance ATW / USER1 / USER2/ ANTI CR/ Manual / Push Lock / Push ATW
Privacy Mask 4 Windows, (Polygonal, 4 Colors)
Motion Detection ON/OFF
ENVIROMENTAL
Temperature Operating: 14°F to 131°F (-10°c to 55°C) Storage: -4°F to 140°F (-20°C to 60°C)
Operating Humidty 10% -85% RH
ELECTRICAL
Power Supply 12 VDC
Power Consumption Less than 150mA
PHYSICAL
Dimensions (W x D x H) 2.3” x 3.9” x 2.5” [ 6cm x 10cm x 6.5cm ]
Unit Weight 0.75 lb (0.340 kg)
Shipping Weight 0.95 lb (0.430 kg)

VS-70 Spec Sheet

Download
