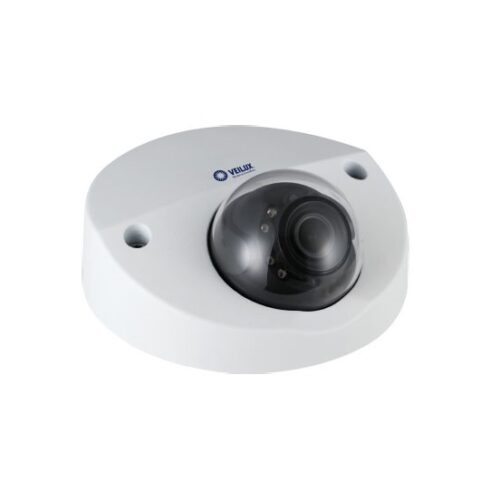

Veilux VV-2HDIR36-CVI-Mobile 2MP Mobile HDCVI IR Dome Camera


  • Max 30fps@1080P
  • HDCVI output (Aviation connector)
  • 3.6mm fixed lens(2.8mm optional)
  • Max. IR length 20m, Smart IR
  • IP67, IK10 , IP6K9K
  • Shock-proof

$0.00

The Veilux VV-2HDIR36-CVI-Mobile Dome Camera features a progressive scan CMOS with a 2MP lens capable of recording footage in 1920 x 1080 resolution. Additionally, the surveillance camera utilizes Smart IR LEDs to capture clear footage at nighttime and during low lighting conditions. An IP67 rating ensures the camera is safe for outdoor use and installation in wet environments. Further, the security camera incorporates 2D noise reduction for clear footage.

Features:

  • Max 30fps@1080P
  • HDCVI output (Aviation connector)
  • 6mm fixed lens(2.8mm optional)
  • IR length 20m, Smart IR
  • IP67, IK10 , IP6K9K
  • Shock-proof

Elaborate Design

For better adapting the applications for vehicles, the mobile camera is designed with micro-sized compact case, which minimizes the interference against on-going activities. Taking aesthetics requirements into consideration, the body and front face of the camera is all-black.

Shock-proof

Vibration is inevitable in mobile applications. In order to avoid image or connection failure, the hardware structure of the mobile camera is shock- proof with the certification of EN50155. Plus, the mobile camera adopts M12 aviation connector for stable connection with MCVR.

Simplicity

HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing cabling.

4 Signals over 1 Coaxial Cable

HDCVI Mobile Camera supports 4 signals to be transmitted over 1 cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm.

* Audio input is available for some models of HDCVI cameras.

Smart IR

The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Our unique Smart IR adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.

Protection

The camera’s outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 and IK10 ranking, making it suitable for indoor or outdoor environments.

With working temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the camera is designed for extreme temperature environments.

Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning

SKU: VV-2HDIR36-CVI-Mobile Categories: , , Tags: , , , , , , , ,
Weight 0.68 lbs
Dimensions 4.17 × 4.17 × 1.98 in
Camera Type

Cameras Signal Type

CVI

Resolution

2MP

Lens Type

Fixed

Lens Size

3.6mm

IR Lighting Distance

IP Rating

Camera

Image Sensor 1/2.7″ CMOS
Effective Pixels 1920(H)×1080(V), 2MP
Scanning System Progressive


Electronic Shutter Speed

PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination 0.02Lux/F2.0 , 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 20m (66feet)
IR On/Off Control Auto / Manual
IR LEDs 8

Lens

Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm Optional)
Max Aperture F2.1
Angle of View H: 89.9° (115.6°)
Focus Control N/A
Close Focus Distance 900mm (600mm) 35.40” (23.6”)

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance


Detect

25px/m (8px/ft) 2.8mm:42.3m(138.8ft)

3.6mm:53.3m(174.9ft)



Observe

63px/m (19px/ft) 2.8mm:16.9m(55.4ft)

3.6mm:21.3m(69.9ft)



Recognize

125px/m (38px/ft) 2.8mm:8.5m(27.9ft)

3.6mm:10.7m(35.1ft)



Identify

250ppm (76px/ft) 2.8mm:4.2m(13.8ft)

3.6mm:5.3m(17.4ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation Pan:-30° ~ 30°

Tilt: 0° ~ 80°

Rotation: 0° ~ 360°

Video

Resolution 1080P (1920×1080)
Frame Rate PAL:1920×1080@25fps;NTSC:1920×1080@30fps
Video Output 1-channel BNC HDCVI high definition video output (Aviation connector)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / DWDR
WDR DWDR
Gain Control AGC
Noise Reduction 2D
White Balance Auto / Manual
Smart IR Auto / Manual

Certifications

Certifications CE FCC

Interface

Audio Interface Built-in Mic




Aviation Connector Interface

1- power

2-   ideo ground

3-power ground

4-video

Electrical

Power Supply 12V DC ±25%
Power Consumption Max 2.44W (12V DC, IR on)

Environmental

Operating Conditions -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH

* Start up should be done at above-40°C (-40°F)

Storage Conditions -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection & Vandal Resistance IP67, IK10

Construction

Casing Aluminum
Dimensions 106mm×50.3mm (4.17″×1.98″)
Net Weight 0.327kg (0.68lb)
Gross Weight 0.44kg (0.93lb)
