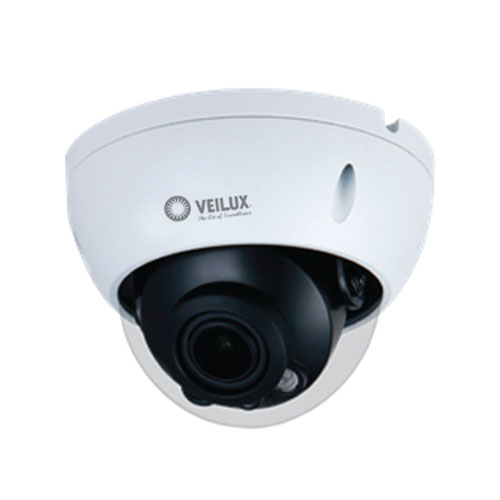

VVIP-2V-IZ-40-PRO 2MP WDR IR Dome Network Camera

Key Features

• 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
• Outputs 2MP (1920 × 1080)@25/30 fps
• H265 codec, high compression rate, ultra-low bit rate
• Built-in IR LED, max IR distance: 40m
• ROI, SMART H264/H.265, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports 256 GB Micro SD card
• 12V DC/PoE power support
• IP67, IK10 protection grade

System Overview

With upgraded H.265 encoding technology, Veilux Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.

Functions

Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Veilux smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Starlight Technology

For challenging low-light applications, Veilux Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.006lux. The camera uses a set of optical features to
balance light throughout the scene, resulting in clear images in dark environments.
This camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.

Wide dynamic range (WDR)

Veilux adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and backlight environment, bright region and dark region with strong light source, you can also get clear images.

Starlight

Veilux Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumina- tion, the technology can guarantee the good image effect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Veilux camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 m (Impact energy is 20J).

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
