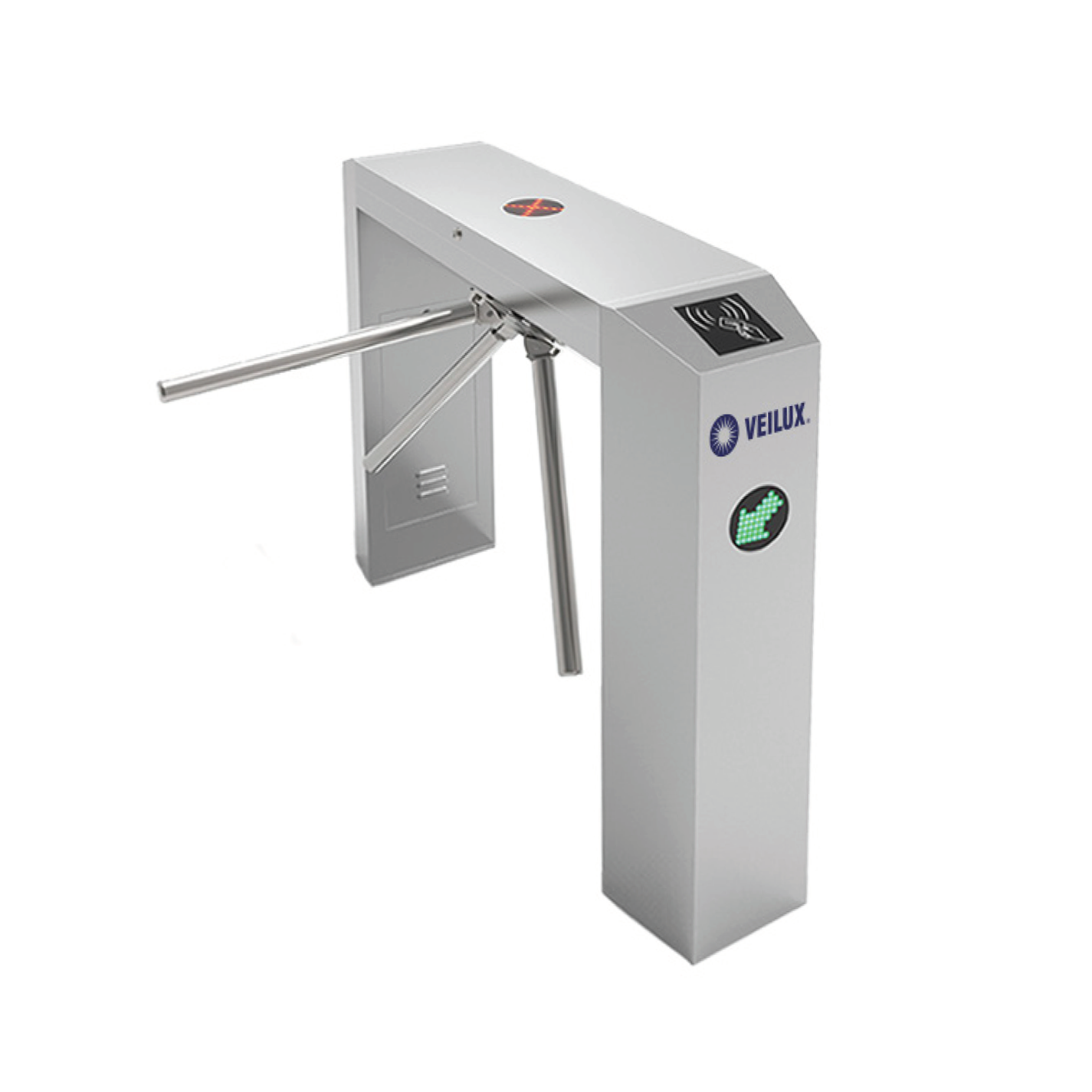

VTU-S312 Stainless Steel Tripod Turnstile


  • Durable steel alloy tripod hub, 304 stainless steel housing & tripod arms.
  • Power Electro-magnetic locks remain in “standby mode” until turnstile is activated.
  • Patented oil lubrication system reduces maintenance.
  • 2-1.5mm thickness 304/316 material are available.

VTU-S312 Stainless Steel Tripod Turnstile:

Overview:

Tripod turnstiles are compact and cost-effective entrance solutions. Designed for smooth and quiet operation, reducing power consumption, wear and tear. It is suitable for areas with a high traffic.

The VTU-S312 series offers a well-designed housing made of durable stainless steel, making this an ideal for high traffic and areas prone to high congestion.



By receiving a signal from the access control system, or pushing button, it allows the entry of one person at a time. Entering into different directions are electronical- ly controlled. The mechanism will be locked as a default until a valid authorization signal is received. If you want to set one side free, you can adjust the mechanism. In case of emergency, the horizontal arm will drop to allow free passage. Leading indicators are included as a standard.

Features:

  • Durable steel alloy tripod hub, 304 stainless steel housing & tripod arms.
  • Power Electro-magnetic locks remain in “standby mode” until turnstile is activated.
  • Patented oil lubrication system reduces maintenance.
  • High quality electrical components.
  • 2-1.5mm thickness 304/316 material are available.
  • Tripod-arms unlock & drop during emergencies/power loss.
  • Smooth outer No exposed screws or fasteners.
  • Visual indicator for access granted (or denied).
  • Ergonomic design makes card/fingerprint authentication fast & simple for users.
  • Supports Anti-tailgating.
  • Chips can be integrated with our customers’ preference for either card or fingerprint access control This greatly reduce installation time & expense.
  • High accurate movement sensor.
  • Full and semi-automatic models are available.
  • Built-in reader.
  • Access control readers are all factory-tested prior to shipping.

Specifications:

Power Requirements AC110V/220V, 50/60Hz




Power Consumption

Starting 73W
Standby 20W
Unlock 63W
Working Temperature -28 °C – 60 °C
Working Humidity 5%-80%
Working Environment Indoor/Outdoor(if sheltered)




Power Consumption

RFID Maximum 32/minute
Fingerprint Maximum 28/minute
Face Maximum 13/minute
Vein Maximum 19/minute
Lane width (mm) 500
Footprint (mm) 1110 x 760
Dimension (LxWxH) 1110 x 280 x 980 (mm)
Dimension with Packing (LxWxH) 1200 x 380 x 1080 (mm)
Net Weight 46 kg
Weight with Packing 54 kg
LED Indicator Yes
Cabinet Material SUS304 Stainless Steel
Lid Material SUS304 Stainless Steel
Barrier Material SUS304 Stainless Steel
Barrier Movement Rotating
Emergency Mode Yes
Security Level Medium
MCBF 5 million
Options/Accessories Counter, Card Receiver Box, SUS316 Cabinet and Lid, Remote Control
