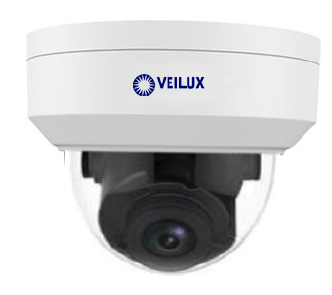

VVIP-2V-IZ-40-PRO 2MP WDR IR Dome Network Camera

  • 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
  • Outputs 2MP (1920 × 1080)@25/30 fps
  • 265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max IR distance: 40m

Key Features

  • 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
  • Outputs 2MP (1920 × 1080)@25/30 fps
  • H265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max IR distance: 40m
  • ROI, SMART H264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports 256 GB Micro SD card
  • 12V DC/PoE power support
  • IP67, IK10 protection grade

System Overview

With upgraded H.265 encoding technology, Veilux Lite series camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better colorful image in the environment of low illumination. It supports SD card storage, waterproof function, dust-proof function and tamper-proof function, complying to the standards of IP67 and IK10.


Smart (H.265+ & H.264+)

Adopting advanced algorithm of auto stream control according to the environment, Veilux smart encoding technology realizes the higher efficiency than (H.265 & H.264 ), providing high-quality video, and reducing the cost of storage and transmission.

Starlight Technology

For challenging low-light applications, Veilux Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.006lux. The camera uses a set of optical features to
balance light throughout the scene, resulting in clear images in dark environments.
This camera is equipped with a built-in intelligent analytic algorithm based on video, which can realize intelligent functions like Tripwire and Intrusion, to quickly and accurately respond to monitoring events in specific area, It can enhance monitoring efficiency. In addition, the camera supports intelligent tamper detection, which is to generate warning message via detecting dramatic scene change and to guarantee effective video surveillance.

Wide dynamic range (WDR)

Veilux adopts advanced Wide Dynamic Range (WDR) technology. You can get clear details in the environment of strong brightness contrast. In high brightness and backlight environment, bright region and dark region with strong light source, you can also get clear images.


Veilux Starlight technology mainly applies to the environment of low illumination, and it can provide clear colorful video. Even in the environment of min. illumina- tion, the technology can guarantee the good image effect.

Intelligent Video Analysis (IVS)

With advanced video algorithm, Veilux camera supports intelligent detection, such as tripwire and intrusion and so on.

Protection (IP67, IK10, wide voltage)

IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.

IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 m (Impact energy is 20J).

Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.

Camera Type



Lens Size


IP Rating

IR Lighting Distance

Image Sensor 1/2.8” 2Megapixel progressive CMOS
Effective Pixels 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s
Min. Illumination 0.002Lux @ F1.5
IR Distance 40 m (131.23 ft)
IR On/Off Control Auto/Manual
IR LEDs Number 2

Pan/Tilt/Rotation Range

Pan: 0°–355°

Tilt: 0°–75°

Rotation: 0°–355°

Lens Type Motorized vari-Auto focus
Mount Type 14
Focal Length 2.7 mm–13.5 mm
2.7mm–13.5mm F1.5

Field of View

Pan: 109°–28°

Tilt: 57°–16°

Diagonal: 131°–33°

Iris Type Auto Iris
Close Focus Distance 0.8 m–0.8 m (2.62 ft–2.62 ft)




Lens Detect Observe Recognize Identify


44.1 m

(144.69 ft)

17.6 m

(57.74 ft)

8.8 m

(28.87 ft)

4.4 m

(14.44 ft)



151.7 m

(497.70 ft)

60.6 m

(198.82 ft)

30.3 m

(99.41 ft)

15.1 m

(49.65 ft)

General IVS Analytics Tripwire; intrusion
Video Compression H.265,H.264,H.264B,H.264H,MJPEG
Smart Codec Yes


Video Frame Rate

Main stream:

1920 × 1080 (1 fps-25/30 fps)

Sub stream:

704 × 576 (1 fps-25 fps)

704 × 480 (1 fps-30 fps)

Stream Capability 2 streams


1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280

×720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF

(352 × 288/352 × 240)

Bit Rate Control CBR/VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps
Day/Night Auto(ICR)/Color/B/W
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Inter- est(RoI) Yes (4 areas)
Smart IR Yes

Privacy Masking


(Supports 90°/270° with 1080p resolution and lower.)

Mirror Yes
Privacy Masking 4 areas
Compression G.711a, G.711Mu, AAC, G.726, G.723
Ethernet RJ-45 (10/100 Base-T)





Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
Streaming Method Unicast/Multicast
Max. User Access 20 Users

Edge Storage


Micro SD card 256 GB


Web Viewer

IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Management Software Smart PSS, DSS, DMSS
Smart Phone iOS, Android


CE-LVD: EN60950-1

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B

Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel In: 5mA 3V–5VDC
Alarm Output 1 channel Out: 300mA 12VDC
Power Supply 12V DC/PoE (802.3af)
Power Consumption <6.4W
Operating Conditions -30° C to +60° C (-22° F to +140° F)/Less than 95% RH
Storage Conditions -40° C to +60° C (-40° F to +140° F)
Ingress Protection IP67
Vandal Resistance IK10
Casing Metal


122mm × 88.9mm (4.80” × 3.50”)
Net Weight 0.47 kg (1.04 lb)
Gross Weight 0.63 kg (1.39 lb)

VVIP-2V-IZ-40-PRO Spec Sheet
